Touch Sensor Light Switch for Home – Easy DIY Electronic Project
A Touch Sensor Light Switch for Home is a simple and modern electronic project that allows you to turn lights ON and OFF by simply touching a sensor plate. Unlike traditional mechanical switches, touch sensor switches are more stylish, durable, and easy to use. These switches are commonly used in smart homes, bedside lamps, automation systems, and DIY electronics projects.
In this beginner-friendly guide by DiySmartLab.com, you will learn how a touch sensor light switch works, required components, circuit connections, applications, advantages, and how to build your own touch-sensitive switch at home.
What is a Touch Sensor Light Switch?
A touch sensor light switch is an electronic switching device that detects human touch and controls electrical appliances such as lights or fans. Instead of pressing a physical button, you simply touch a metal plate or sensor area to activate the switch.
Touch switches use capacitive sensing technology or dedicated touch sensor ICs like TTP223 to detect touch input. These switches are widely used in modern smart home automation systems.
Components Required for Touch Sensor Light Switch
- TTP223 Touch Sensor Module
- 5V Relay Module
- Arduino Uno (optional for advanced control)
- LED Bulb or AC Lamp
- Connecting Wires
- Breadboard
- 5V Power Supply
- Transistor (optional)

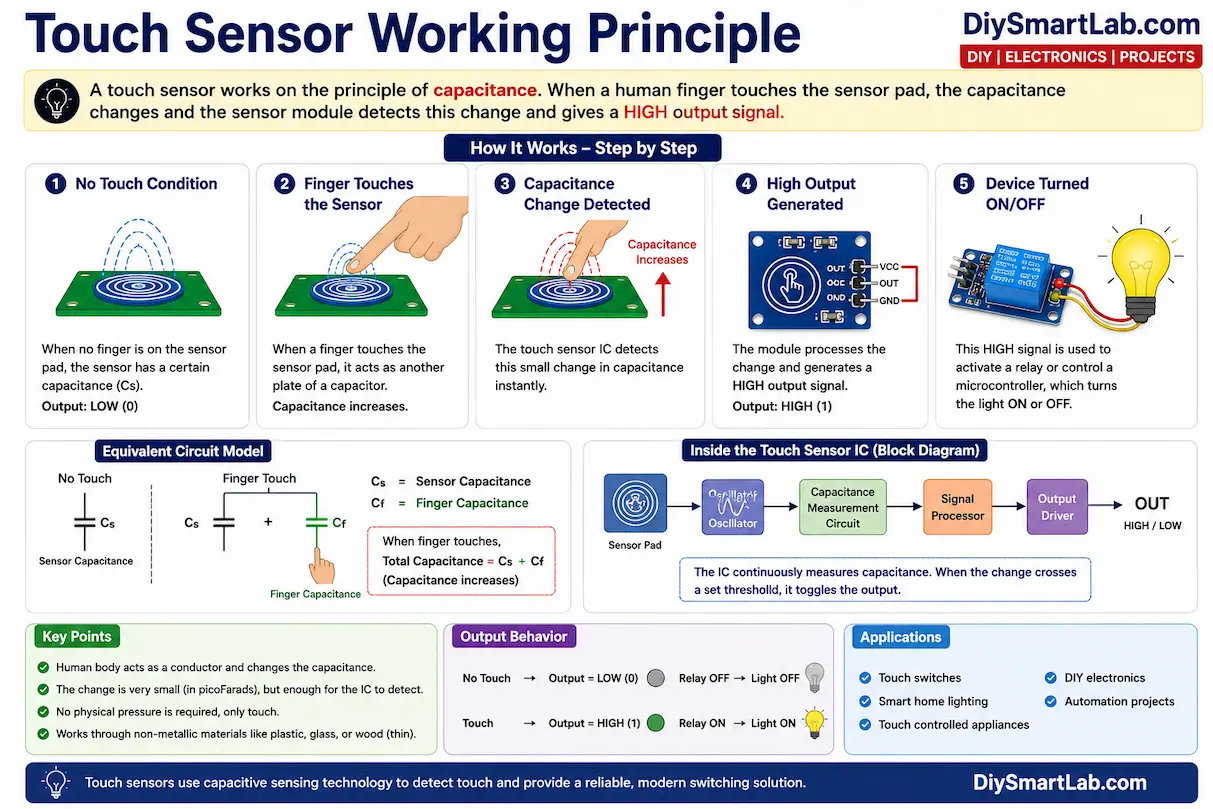

How Does a Touch Sensor Work?
The touch sensor detects small changes in capacitance when a human finger touches the sensor surface. Human skin carries electrical properties that slightly change the sensor’s capacitance value.
The touch sensor module processes this change and generates a digital HIGH signal. This signal can directly control an LED or trigger a relay module to operate household electrical devices.

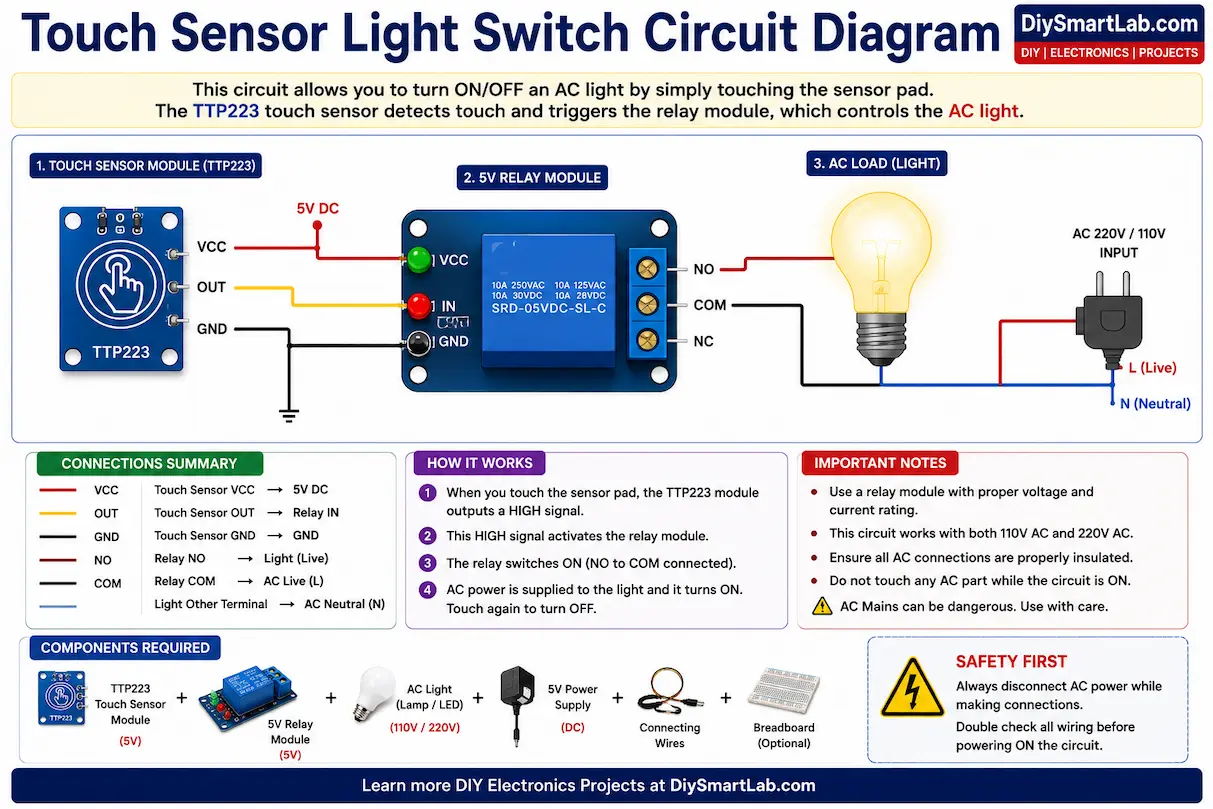

Touch Sensor Light Switch Circuit Diagram
The circuit is simple and beginner-friendly. The touch sensor module output connects to a relay module input. When you touch the sensor, the relay activates and turns ON the connected light.
- VCC → 5V Supply
- GND → Ground
- OUT → Relay Input
- Relay Output → AC Light Connection
Important: Always be careful while working with AC mains voltage. Use proper insulation and safety precautions.
How to Build a Touch Sensor Light Switch

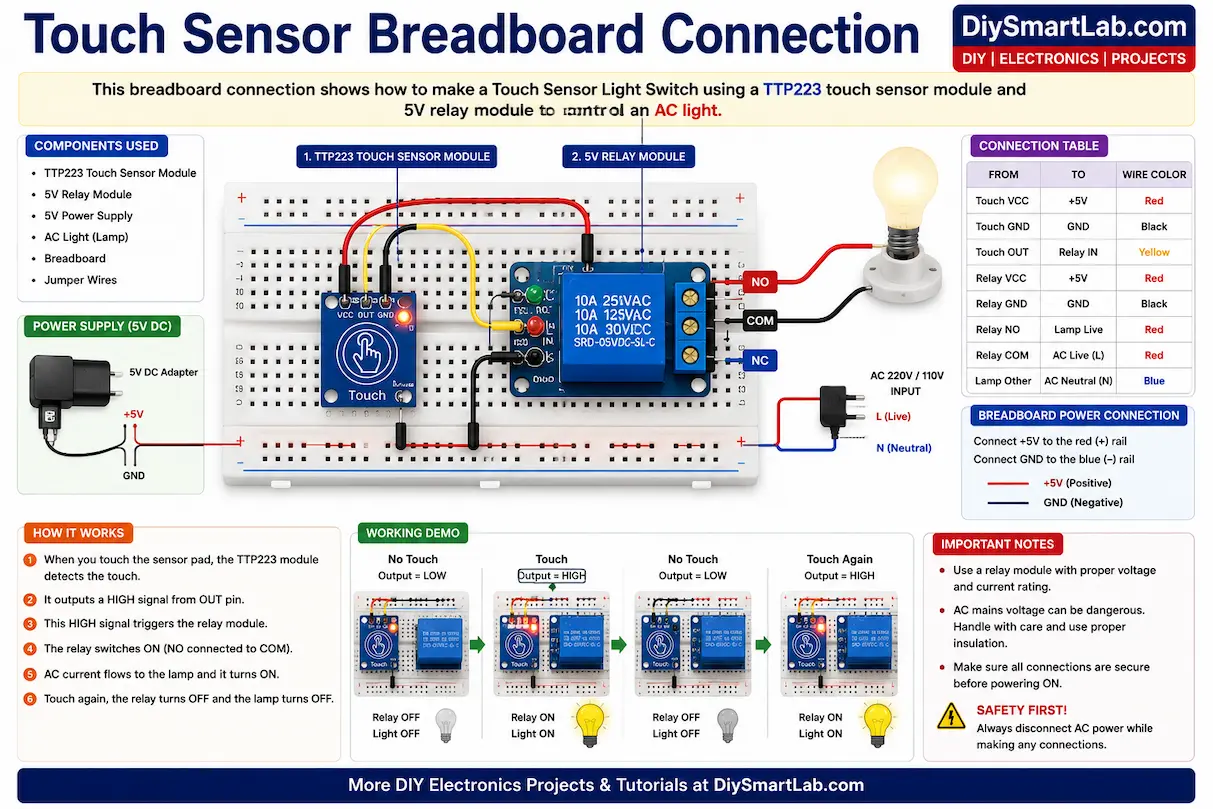

- Place the touch sensor module on the breadboard.
- Connect VCC and GND to the power supply.
- Connect the OUT pin to the relay module input.
- Connect the light bulb through the relay output.
- Power ON the circuit.
- Touch the sensor pad to turn the light ON or OFF.
Advantages of Touch Sensor Switches
- Modern and stylish design
- No moving mechanical parts
- Longer lifespan
- Easy to use
- Works well in smart home systems
- Low maintenance
- Fast switching response
Applications of Touch Sensor Light Switch
- Smart home automation
- Bedside touch lamps
- Kitchen lighting systems
- Touch-controlled appliances
- DIY electronic projects
- Modern office lighting
- Decorative LED lighting
Safety Tips While Using Touch Sensor Switches
- Use insulated wires for AC connections.
- Do not touch exposed live wires.
- Use proper relay modules for high voltage loads.
- Keep the circuit away from water or moisture.
- Test the circuit with low voltage first.
Conclusion
The Touch Sensor Light Switch for Home is an excellent beginner-friendly electronics project that demonstrates the basics of capacitive touch sensing and home automation. It is affordable, easy to build, and highly useful in modern smart homes.
If you are learning DIY electronics, Arduino projects, or smart home automation, this project is a perfect starting point. Follow DiySmartLab.com for more smart DIY electronics tutorials and beginner-friendly projects.
Frequently Asked Questions (FAQs)
What is a touch sensor light switch?
A touch sensor light switch is an electronic switch that controls lights when a user touches the sensor surface.
Which sensor is used in touch switch projects?
The TTP223 capacitive touch sensor module is commonly used in DIY touch switch projects.
Can I control AC appliances using a touch sensor?
Yes, by using a relay module, touch sensors can safely control AC lights and home appliances.
Are touch sensor switches safe?
Yes, touch sensor switches are safe when designed properly with insulated connections and relay protection.
Can I use Arduino with a touch sensor switch?
Yes, Arduino boards can easily interface with touch sensors for advanced automation projects.
