Arduino LED Blinking Project for Beginners

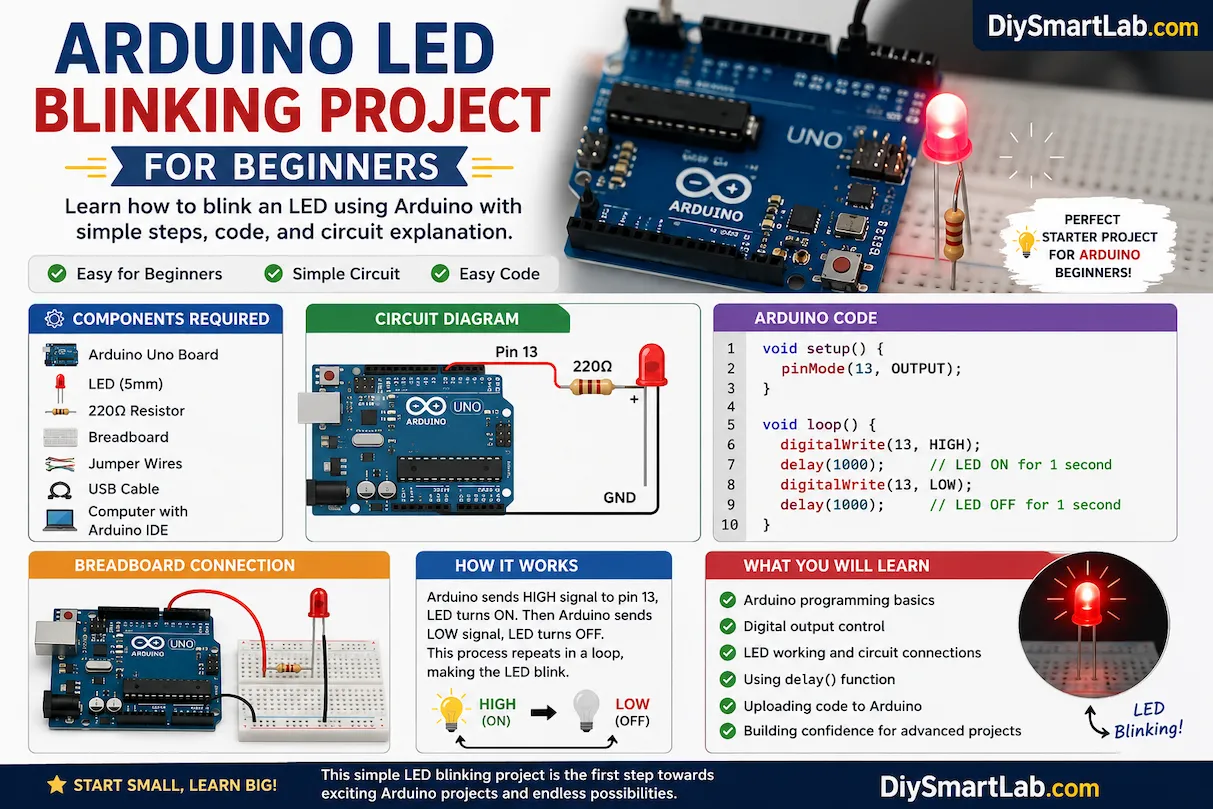

The Arduino LED Blinking Project is one of the easiest and most popular beginner projects in electronics and programming. In this tutorial by DiySmartLab.com, you will learn how to blink an LED using an Arduino Uno board with simple wiring and easy-to-understand code.

This project helps beginners understand the basics of Arduino programming, digital output pins, LEDs, and timing functions. If you are new to Arduino, this is the perfect starting project.

Arduino LED Blinking Project for Beginners

What is an Arduino LED Blinking Project?

An Arduino LED blinking project is a simple electronics experiment where an LED turns ON and OFF repeatedly using an Arduino board. The Arduino sends HIGH and LOW signals to the LED pin, creating a blinking effect.

This project is commonly used to learn:

Arduino programming basics
Digital output control
LED operation
Delay timing functions
Breadboard connections

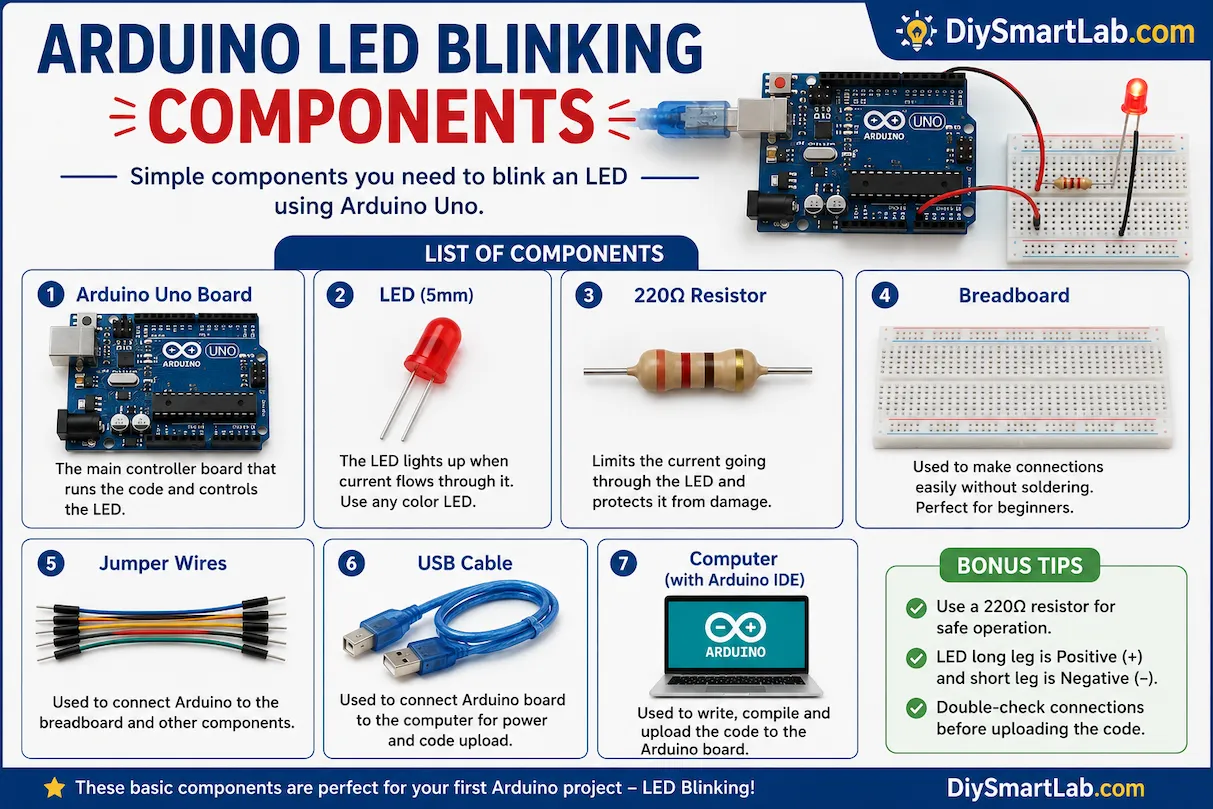

Components Required for Arduino LED Blinking Project

Arduino Uno Board
LED (5mm)
220Ω Resistor
Breadboard
Jumper Wires
USB Cable
Computer with Arduino IDE

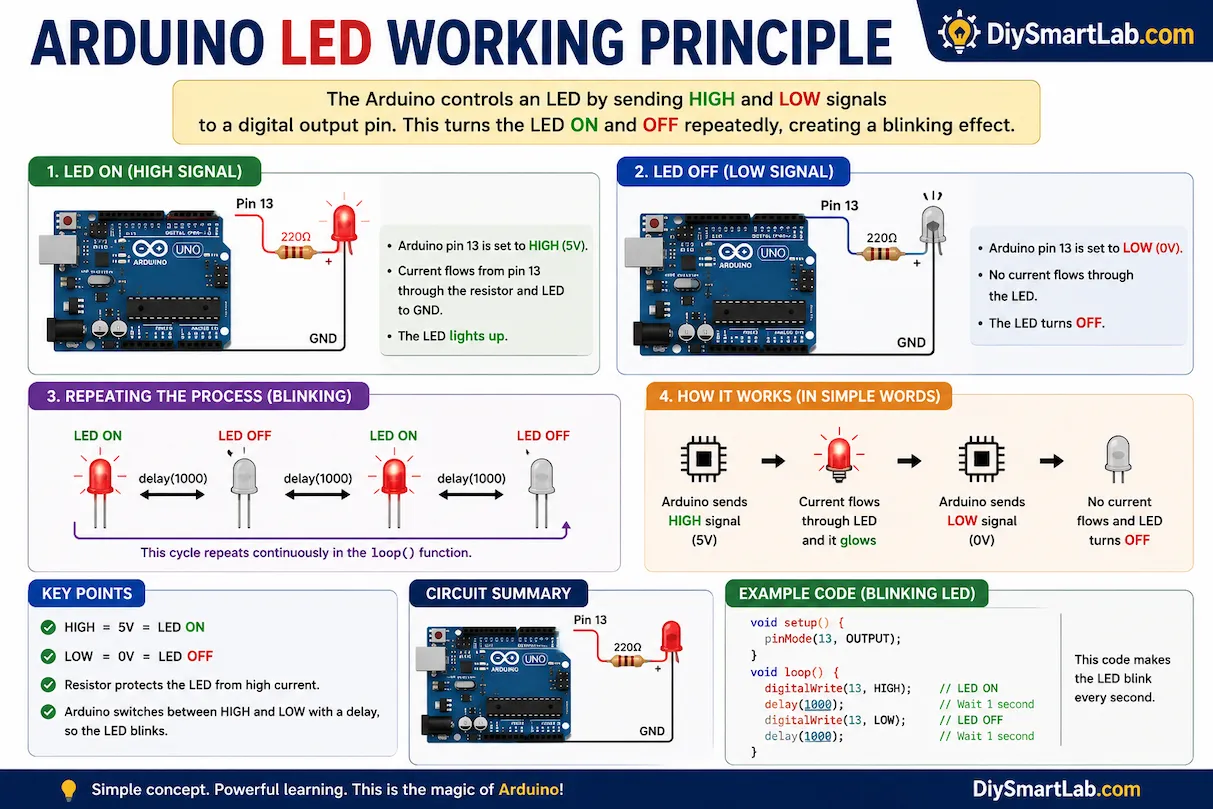

How LED Blinking Works in Arduino

The Arduino controls the LED through one of its digital output pins. When the pin is set HIGH, current flows through the LED and it turns ON. When the pin is set LOW, current stops flowing and the LED turns OFF.

The Arduino repeatedly switches between HIGH and LOW with a small delay, creating the blinking effect.

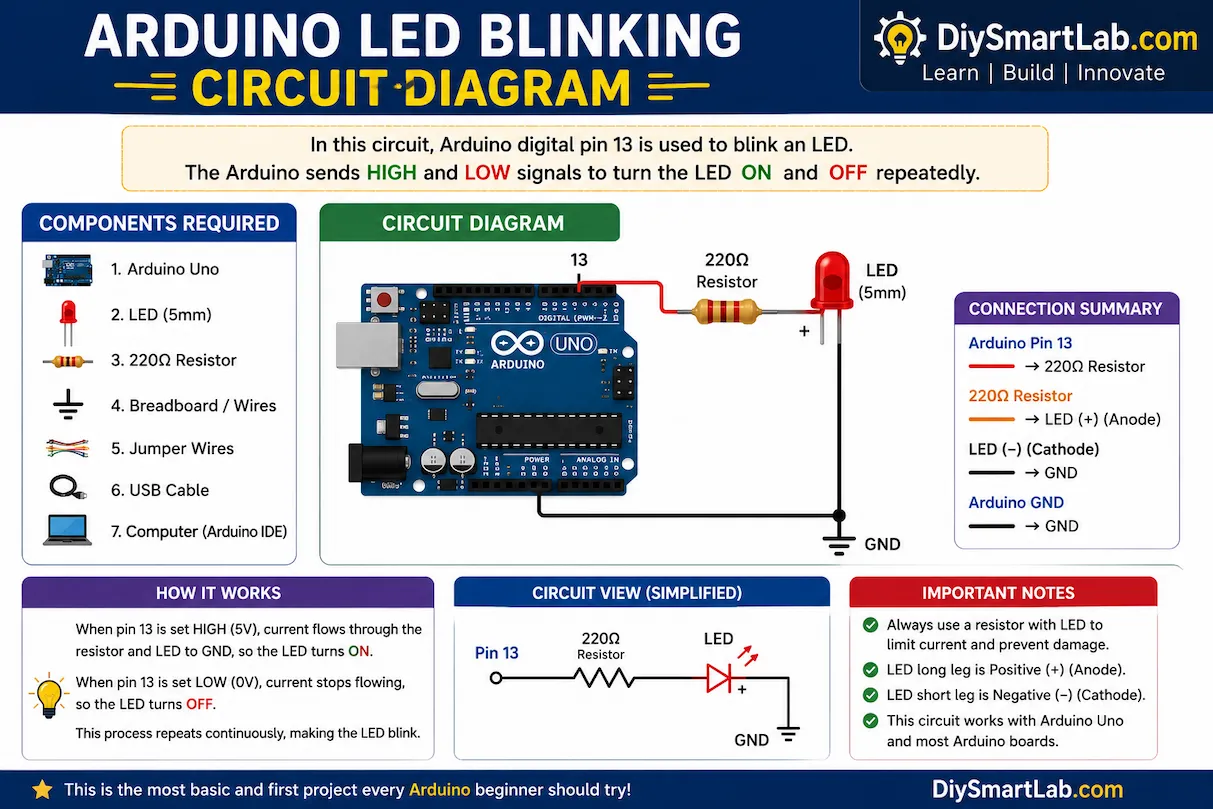

Arduino LED Blinking Circuit Diagram

Connect the positive leg (anode) of the LED to Arduino digital pin 13 through a 220Ω resistor. Connect the negative leg (cathode) of the LED to the GND pin of Arduino.

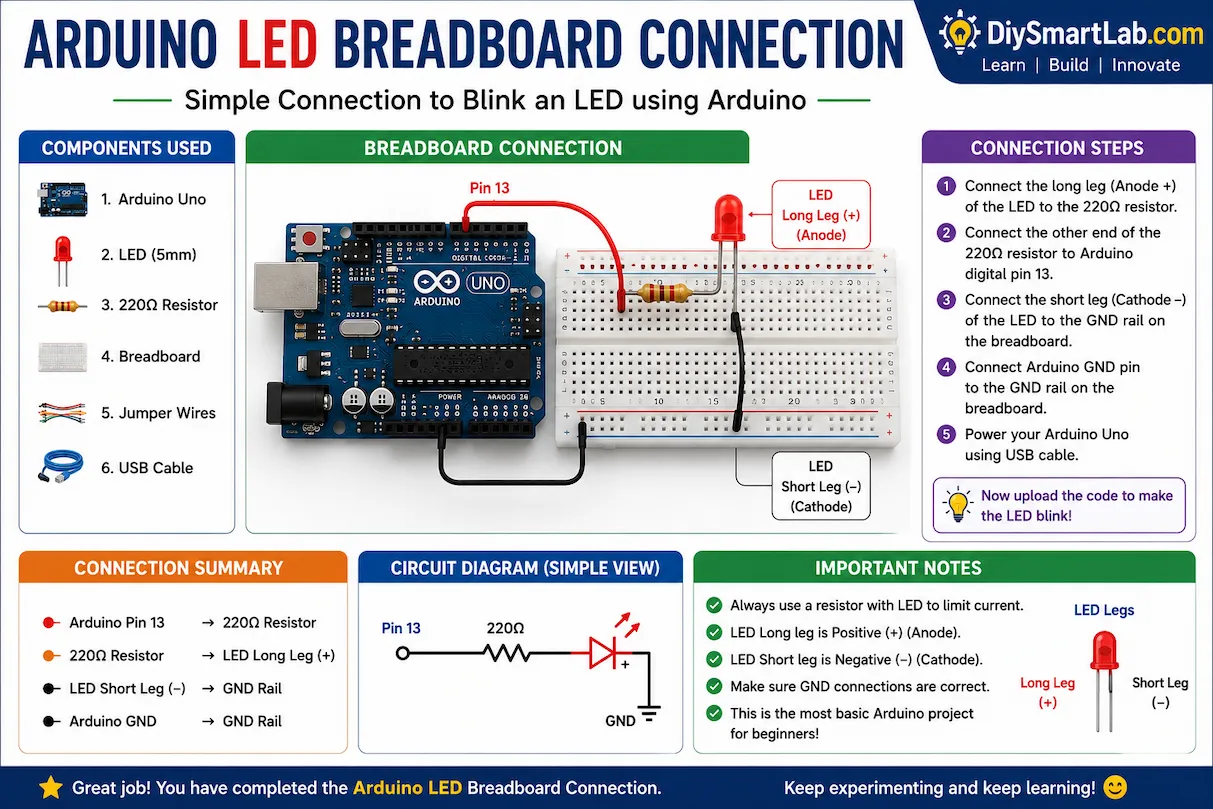

Arduino LED Breadboard Connection

Connect LED positive leg to resistor
Connect resistor to Arduino pin 13
Connect LED negative leg to GND
Connect Arduino to computer using USB cable

Arduino LED Blinking Code


void setup() {
  pinMode(13, OUTPUT);
}

void loop() {
  digitalWrite(13, HIGH);
  delay(1000);

  digitalWrite(13, LOW);
  delay(1000);
}

Code Explanation

pinMode(13, OUTPUT); sets pin 13 as output.
digitalWrite(13, HIGH); turns the LED ON.
delay(1000); waits for 1 second.
digitalWrite(13, LOW); turns the LED OFF.
The loop repeats continuously.

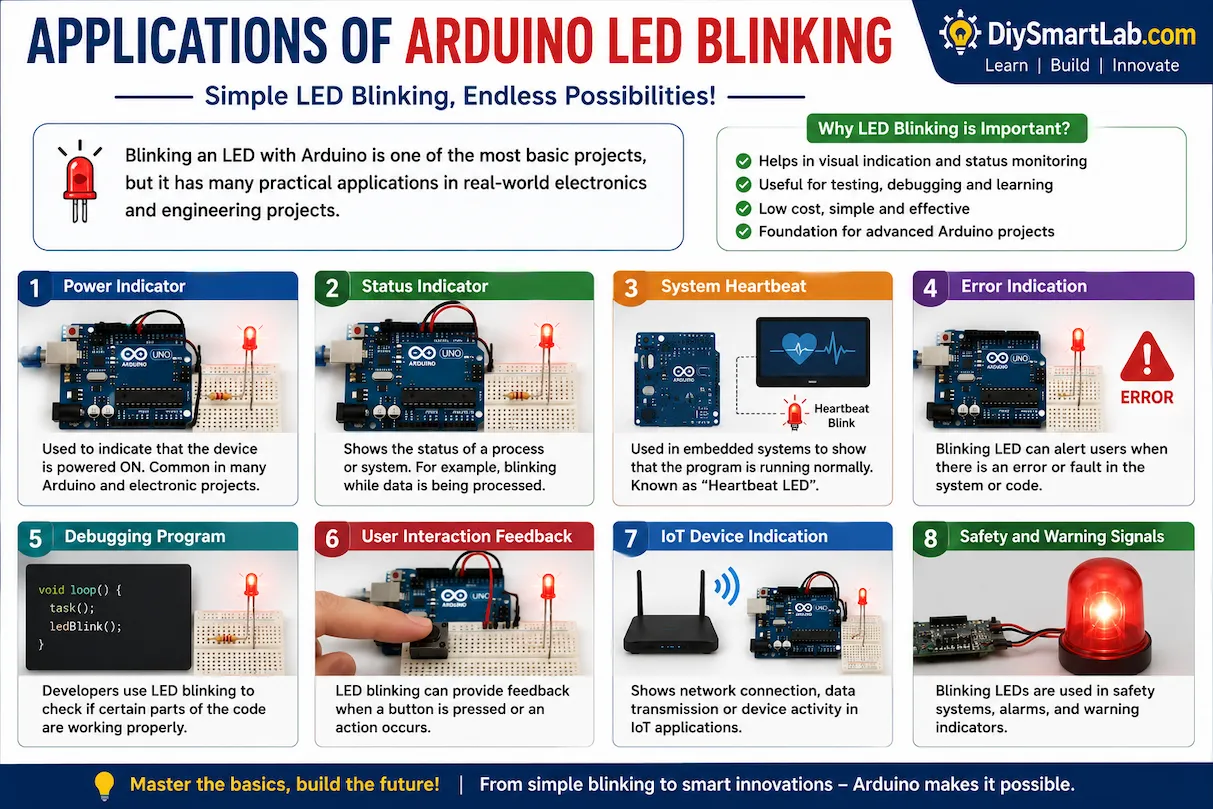

Applications of Arduino LED Blinking Project

Learning Arduino basics
Testing digital output pins
LED indication systems
Electronic project debugging
DIY electronics learning projects
Smart home indicator systems

Common Mistakes Beginners Make

Connecting LED in reverse polarity
Not using a resistor with LED
Uploading code to wrong COM port
Loose breadboard connections
Using wrong Arduino board selection in IDE

Tips for Beginners

Always use a resistor with LED
Double-check wiring connections
Use quality jumper wires
Start with simple projects before advanced circuits
Experiment with different delay timings

Conclusion

The Arduino LED Blinking Project for Beginners is one of the best ways to start learning electronics and Arduino programming. It teaches the fundamentals of digital output control, coding structure, and circuit building in a simple and practical way.

Once you complete this project, you can move on to advanced Arduino projects like LED chasers, RGB LED control, sensors, and smart home automation systems.

Frequently Asked Questions (FAQs)

Why is my Arduino LED not blinking?

Check your wiring connections, LED polarity, resistor connection, and uploaded code.

Can I blink multiple LEDs with Arduino?

Yes, you can control multiple LEDs using different Arduino digital pins.

Why do we use a resistor with LED?

A resistor limits current and protects the LED from damage.

Which Arduino board is best for beginners?

Arduino Uno is the most beginner-friendly board because of its simple design and large community support.

Can I use the built-in LED on Arduino Uno?

Yes, Arduino Uno already has a built-in LED connected to pin 13 that you can use directly.
